ZK-AM100 – 2.1 channel 2x50 plus 100 watt subwoofer output Class D Karaoke Audio Amplifier - Color Black

Name: ZK-AM100 – 2.1 channel 2x50 plus 100 watt subwoofer output Class D Karaoke Audio Amplifier - Color Black
Brand: Без бренда
SKU: 101193
Price: 1700 UAH
Availability: InStock

Brand: Без бренда Code: ZK-AM100 Article: 101193

All about product

Description

Specification

Reviews

Questions

NEW

ZK-AM100 – 2.1 channel 2x50 plus 100 watt subwoofer output Class D Karaoke Audio Amplifier - Color Black

In Stock

1 700 ₴

Found cheaper?

Buy this product in 1 click:

Adjusting channels and volume:Mic echo control; Subwoofer cutoff frequency adjustment; Adjusting the subwoofer volume; Mic volume control; General volume control

Audio outputs:2 × Passive speakers; 1 × Subwoofer

Cooling:Passive cooling

Load Impedance:4-8 Ohm

Load Impedance subwoofer channel:3-8 Ohm

Delivery

Nova Poshta to branches and terminals

According to the carrier's tariffs

Nova Poshta by courier to the address

According to the carrier's tariffs

Payment

Payment upon receipt products

Payment by card - money transfer

Payment to the bank account

Online Payment - Plata by Mono

Online Payment - Rozetka Pay

Payment with cryptocurrency - Whitepay

Consumer Rights

ZK-AM100 – 2.1 channel 2x50 plus 100 watt subwoofer output Class D Karaoke Audio Amplifier - Color Black

1 700 ₴

Description

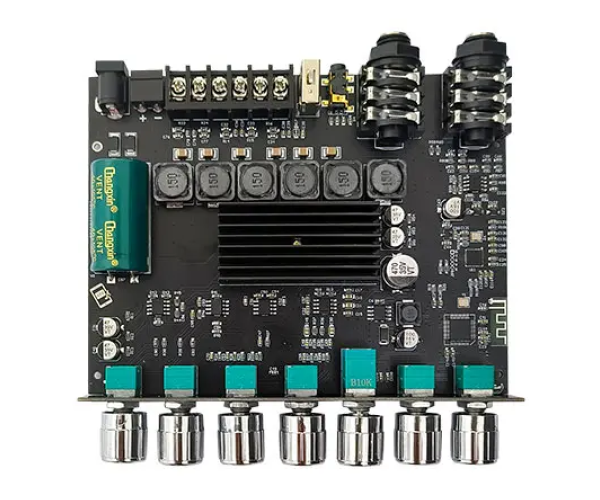

This universal karaoke audio amplifier combines powerful sound with convenient features for versatile use. Equipped with a reliable TPA3116D2 amplifier chip, it delivers clear and dynamic sound with an output power of 2×50W stereo and 100W for the subwoofer.

Control is simple and convenient thanks to multifunctional settings for quick playback and volume adjustment. Bluetooth version 5.1 provides stable wireless connection up to 15 meters.

For flexibility, the device supports two microphone inputs compatible with wired or wireless, condenser, and dynamic microphones. Two-way volume control is also provided for background music and microphones, and the protection system includes protection against reverse power connection, overheating, overcurrent, short circuit, and static electricity.

Specifications:

Model: ZK-AM100
Amplifier chip: TPA3116D2
Bluetooth version: 5.1
Bluetooth transmission range: 15 meters
Audio inputs: Bluetooth, AUX, USB disk, USB sound card, MIC
Output power: left channel 50W + right channel 50W + subwoofer 100W
Power supply: DC 12-24V
Recommended speakers: 4-8 Ω (20-50W for left and right channels), 3-8 Ω (20-100W for subwoofer)
Two-way volume control: background music and microphone
Protection: reverse polarity, overheating, overcurrent, short circuit, static electricity protection
Feature: dual microphone input

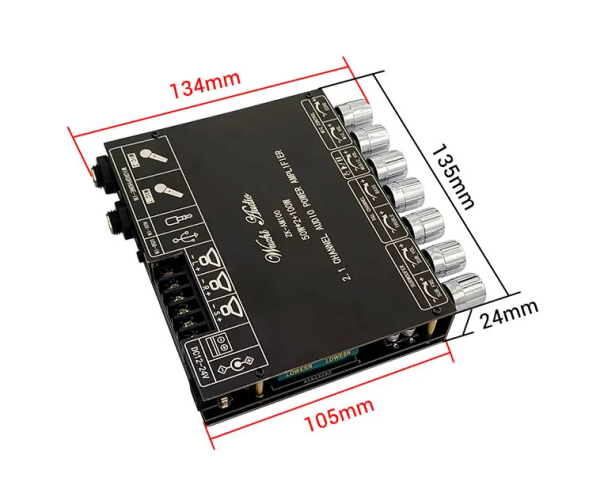

Dimensions: 134×135×24 mm
Weight: 288 g (without packaging), 345 g (with packaging)
Package includes: Amplifier board ×1, accessories set ×1 (assembly required)

Note: The package includes only the amplifier. Power supply is not included.

Specifications

Main section

Audio amplifiers

Model

ZK-AM100

Device power, W

200 (2×50+100)

Wireless capabilities

Bluetooth

Input interfaces

U-Disk; AUX; 2 × microphone input 6.35 mm Jack

Protection Circuit

Electrostatic; Overcurrent; Over-temperature; Reverse current; Short circuit

Indication

Light indication

Input voltage, V

DC 12-24V

Adjusting channels and volume

Mic echo control; Subwoofer cutoff frequency adjustment; Adjusting the subwoofer volume; Mic volume control; General volume control

Audio outputs

2 × Passive speakers; 1 × Subwoofer

Cooling

Passive cooling

Load Impedance

4-8 Ohm

Load Impedance subwoofer channel

3-8 Ohm

Max amplifier power per channel W

2 channels of 50 W; 1 subwoofer channel 100 W

Number of channels

2.1

Power Amplifier Chip

TPA3116D2

Subwoofer cutoff frequency range

20Hz-200Hz

Tone adjustment

Manual bass adjustment; Manual treble adjustment

Frequency range

20Hz-20kHz

Colour

Black

Сondition

New

Housing Material

Metal

Country of brand registration

China

Country of manufacture

China

Weight without packaging

288 g

Size

13.4 cm х 13.5 cm х 2.4 cm

Additionally

Please note! Product specifications are subject to change by the manufacturer without notice. There may be little differences from the product that is shown in the photo.
