Sinilink XY-S100L – 2.1 channel 2x50 plus 100 watt subwoofer output Class D Audio Amplifier - support Bluetooth AUX and USB Color Black

Name: Sinilink XY-S100L – 2.1 channel 2x50 plus 100 watt subwoofer output Class D Audio Amplifier - support Bluetooth AUX and USB Color Black
Brand: Sinilink
SKU: 101192
Price: 1200 UAH
Availability: InStock

Brand: Sinilink Code: XY-S100L Article: 101192

All about product

Description

Specification

Reviews

Questions

NEW

Sinilink XY-S100L – 2.1 channel 2x50 plus 100 watt subwoofer output Class D Audio Amplifier - support Bluetooth AUX and USB Color Black

In Stock

1 200 ₴

Found cheaper?

Buy this product in 1 click:

Adjusting channels and volume:Subwoofer cutoff frequency adjustment; Adjusting the subwoofer volume; General volume control

Audio outputs:2 × Passive speakers; 1 × Subwoofer; 1 × 3.5 mm stereo output

Cooling:Passive cooling

Load Impedance:4-8 Ohm

Load Impedance subwoofer channel:4-8 Ohm

Delivery

Nova Poshta to branches and terminals

According to the carrier's tariffs

Nova Poshta by courier to the address

According to the carrier's tariffs

Payment

Payment upon receipt products

Payment by card - money transfer

Payment to the bank account

Online Payment - Plata by Mono

Online Payment - Rozetka Pay

Payment with cryptocurrency - Whitepay

Consumer Rights

Sinilink XY-S100L – 2.1 channel 2x50 plus 100 watt subwoofer output Class D Audio Amplifier - support Bluetooth AUX and USB Color Black

1 200 ₴

Description

XY-S100L is a powerful 2.1-channel Bluetooth 5.0 audio amplifier with high and low frequency adjustment features. Equipped with two amplifier chips, it delivers 50W output power for each stereo channel and 100W for the subwoofer channel, providing clear and rich sound.

The amplifier supports multiple input options: Bluetooth, AUX, USB flash drive, and USB sound card, making it a versatile solution for home audio systems. Volume control is done via a smooth rotary encoder with infinite rotation. Outputs are provided for passive speakers, subwoofer, and a 3.5mm audio jack.

The amplifier automatically switches between playback modes depending on the connected source, giving priority to USB and AUX over Bluetooth.

Maximum output power: 50W × 2 + 100W (subwoofer)
Power supply: DC 5–26V
Output impedance: 4–8 ohms
Amplifier type: Class D
Audio inputs: Bluetooth 5.0 / AUX / USB flash drive / USB sound card
Volume control: rotary encoder with infinite rotation

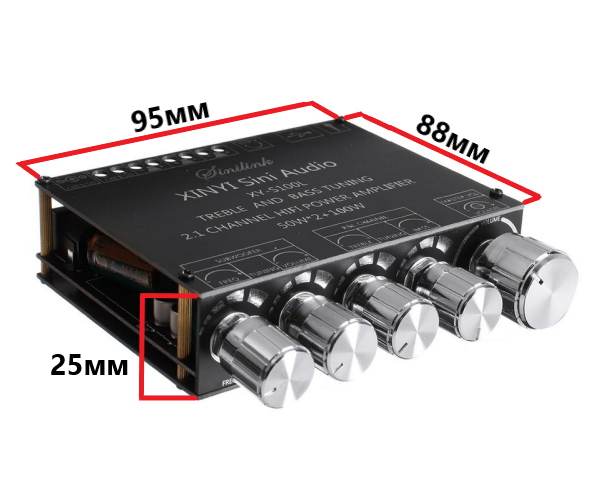

Dimensions: 95 × 88 × 25 mm
Weight with packaging: 156 g
Recommended speakers: 4–8 ohms, stereo channels 10–100W, subwoofer 20–200W
Protection: against static electricity, overcurrent, short circuit, and overheating

Note: The package includes only the amplifier. Power supply is not included.

Specifications

Main section

Audio amplifiers

Model

XY-S100L

Device power, W

200 (2×50+100)

Wireless capabilities

Bluetooth

Input interfaces

U-Disk; AUX

Protection Circuit

Electrostatic; Overcurrent; Over-temperature; Short circuit

Indication

Light indication

Input voltage, V

DC 8-26V

Adjusting channels and volume

Subwoofer cutoff frequency adjustment; Adjusting the subwoofer volume; General volume control

Audio outputs

2 × Passive speakers; 1 × Subwoofer; 1 × 3.5 mm stereo output

Cooling

Passive cooling

Load Impedance

4-8 Ohm

Load Impedance subwoofer channel

4-8 Ohm

Max amplifier power per channel W

2 channels of 50 W; 1 subwoofer channel 100 W

Number of channels

2.1

Subwoofer cutoff frequency range

20Hz-200Hz

Tone adjustment

Manual bass adjustment; Manual treble adjustment

Frequency range

20Hz-30kHz

Colour

Black

Сondition

New

Housing Material

Metal

Country of brand registration

China

Country of manufacture

China

Weight without packaging

156 g

Size

9.5 cm х 8.8 cm х 2.5 cm

Additionally

Please note! Product specifications are subject to change by the manufacturer without notice. There may be little differences from the product that is shown in the photo.
